RESIDENTIAL GATE
OPERATORS
Operators - sometimes called openers - are the motorized devices that automate your gates. Different operators are best suited of certain applications.
Check below to find which works best for yours.
-
LiftMaster LA500UL
24VDC Residential/Light Commercial Linear Actuator
Rated for gates up to 18ft. or 1,600 lbs.
Battery backup
Integrates easily with LiftMaster Access Control Technology.
-
Viking G-5
Vehicular Swing Gate Operator
Max gate capacity: 2000 lbs/10’ or 800 lbs/18’
Max operating speed: 15 - 18 Seconds per 90°
Strike Protection: 10,000 Amps / 20,000 Volts
Compatible with solar panels
-
LiftMaster CSW200UL
1/2 and 1 HP AC High Traffic Commercial Swing Gate Operators
For high-traffic applications. Ideal for large gated communities or commercial facilities.
1/2 HP rated for gates 18ft or 1,600 lbs. 1 HP rated for gates 22ft or 2,000 lbs.
Integrates easily with LiftMaster Access Control Technology.
-
LiftMaster CSW24UL
24VDC High-Traffic Commercial Swing Gate Operator
Ideal for high-traffic applications
Provides battery back-up when the power is down.
Rated For gates up to 18ft. or 1,600 lbs.
Integrates easily with LiftMaster Access Control Technology.
Compatible with solar panels
-
Viking I-770
Viking I-770 Underground Gate Operator
Nearly invisible
Max gate capacity: 650 lbs/12’
Max operating speed: 13 - 15 Seconds per 90°
Battery Backup
Strike Protection: 10,000 Amps / 20,000 Volts
-
FAAC S800H
24V Underground Hydraulic Operator
Rated for gates up to 13ft. or 1,760lbs.
HYBRID technology - combines the advantages of hydraulic technology with that of 24V: sturdiness, high performance, reliability over time, speed control.
-
Viking K-2
Residential Slide Gate Operator
Max gate capacity: 700 lbs/30’
Max operating speed: 12” Per Second
Battery Back Up through 100 cycles
115/230V AV power source
Strike Protection: 10,000 Amps / 20,000 Volts
-

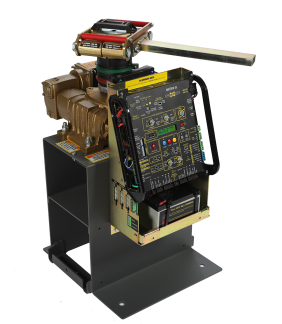

Max Megatron 1400 Pro
High Traffic Heavy Duty Commercial Brushless DC Sing Gate Operator
Capacity 1400lbs/15ft or 1200lb/20ft
Gate speed 11 1⁄2 to 18 seconds per 90 degrees
Battery backup enabling over 400 cycles in case of power failure
Audible alarm if gate is tampered with or ERD is triggered for higher security
-
Max Megatron 2200 Pro
High Traffic Heavy Duty Commercial Brushless DC Swing Gate Operator
Capacity 2500 lbs./15 ft. or 1800 lbs. 20 ft.
Gate speed 11 1⁄2 to 18 seconds
Battery backup enabling over 400 cycles in case of power failure
Audible alarm if gate is tampered with or ERD is triggered for higher security
-
LiftMaster HCTDCUL
Specialty Tilt Gate Operator
Engineered to increase uptime and provide powerful, reliable performance
Noise-isolating design provides for exceptionally smooth and quiet operation.
Selectable speed control opens up to 11" inches per second to keep traffic flowing.
Integrates easily with LiftMaster Access Control Technology.
-
FAAC 680
Commercial Traffic Control Gate Opener
Capable of performing 2,000,000 cycles thanks to advanced hybrid technology that features a hydraulic and brushless motor
Adjustable electronic anti-crushing safety system
Barrier Length: 6.5 - 26.5 ft.
Opening Time (Programmable): 1.5 - 6 sec.
SOLAR PANELS?
We are often asked about using solar panels to power automatic gate systems. Good news: it is possible! Certain gate operators do work well with solar panels. Solar panels are not as reliable as hard-wired electricity, but work well for applications where wired electrical isn’t possible, often due to distance from a structure. We can help you decide if a solar powered gate operator is the best option for your automatic gate system, but here are a few things to keep in mind as you consider:
-
Obviously, solar panels are not an option in places that do not receive direct sunlight for most of the day, or the gate may not have enough power to open.
-
The location of the solar panels depends on a variety of factors, including the type of gate, the direction of sunlight, obstructions surrounding the gate, etc.
-
High cycle applications, such as parking garages or apartment complexes, are often not suited for solar power as the frequent use requires more power than panels can reliably provide.
